Hyundai Genesis: Crash Pad / Cluster Fascia Panel Repair procedures

Replacement

• Put on gloves to prevent hand injuries.

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. • When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface. • Take care not to bend or scratch the trim and panels.

1.	Lower the steering wheel.

2.	Using a screwdriver or remover, remove the steering column shroud upper panel (A).

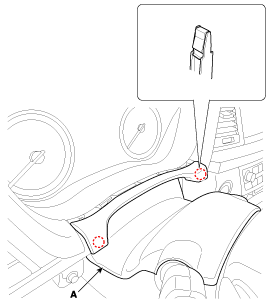

3.	Using a screwdriver or remover, remove the cluster facia upper panel assembly (A).

4.	After loosening the mounting screw, remove the cluster facia panel (A).

5.	Install in the reverse order of removal. • Replace any damage clips.
