Hyundai Genesis: Warning Messages / Check BRAKE SWITCH fuse. Turn on "FUSE SWITCH"

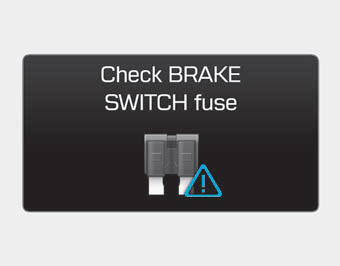

Check BRAKE SWITCH fuse

  • This warning message illuminates if the brake switch fuse is disconnected.
  • It means that you should replace the fuse with a new one. If that is not possible, you can start the engine by pressing the Engine Start/Stop button for 10 seconds in the ACC position.

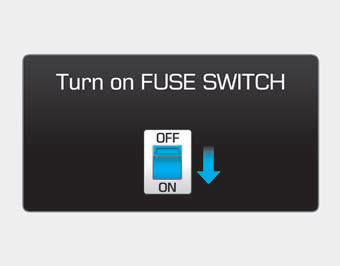

Turn on "FUSE SWITCH"

  • This warning message illuminates if the fuse switch under the steering wheel is OFF.
  • It means that you should turn the fuse switch on.
