Hyundai Genesis (DH): Brake System / Brake Pedal Components and Components Location
| Components |

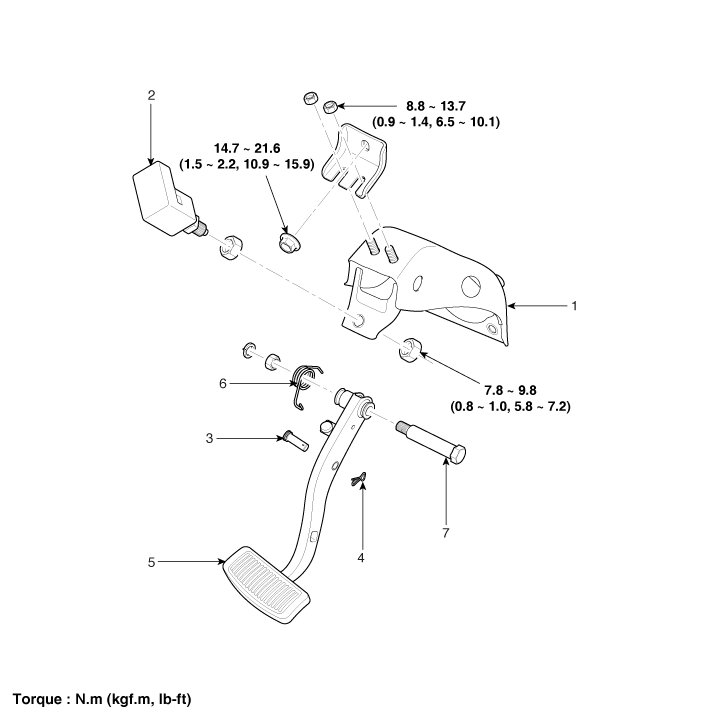

| 1. Brake pedal member assembly 2. Stop lamp switch 3. Clevis pin 4. Snap pin | 5. Brake pedal stopper 6. Return spring 7. Bolt |
Removal 1. Disconnect the brake fluid level switch connector, and remove the reservoir cap. 2. Remove the brake fluid from the master cylinder reservoir with a syringe.
Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel") 3.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Rear Combination Lamp Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. After loosening the nuts (4EA) holding the rear combination lamp and disconnecting the connector (A), remove the outside rear combination lamp assembly. 3. Remove the bulb (A) after turning it in the counter clock-wise direction.
Hyundai Genesis (DH) 2013-2016 Service Manual: Auto Defogging Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the auto defogging connector. 3. Verify that the auto defogging actuator operates to the open position when connecting 12V to terminal 3 and grounding terminal 4. Verify that the auto defogging actuator operates to the close position when connected in reverse.
