Hyundai Genesis (DH): Premium AVN System / AUX jack Schematic Diagrams

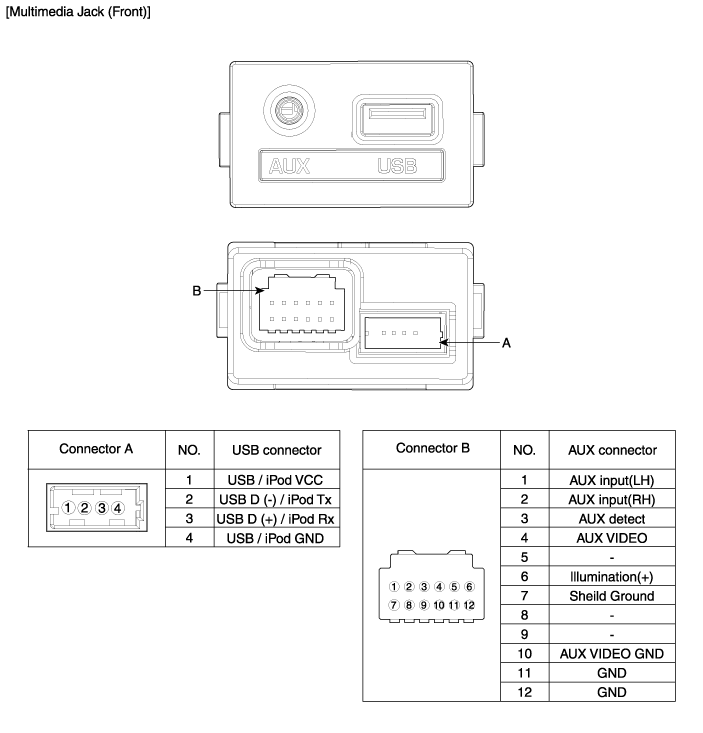

| Circuit Diagram |
Inspection Troubleshooting of the speakers When handling the speakers: - Do not cause shock to the speakers by dropping or throwing them.
Description The multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3 and etc.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Intake Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the intake actuator connector. 3. Verify that the intake actuator operates to the fresh position when connecting 12V to terminal 3 and grounding terminal 4. Verify that the intake actuator operates to the recirculation position when connected in reverse.
Hyundai Genesis (DH) 2013-2016 Service Manual: Heater & A/C Control Unit Repair procedures
Self Diagnosis 1. Self-diagnosis process 2. How to read self-diagnostic code After the display panel blinks three times every 0.5 second, the corresponding fault code blinks on the setup temperature display panel every 0.5 second and will show two figures.
