Hyundai Genesis: Where are the air bags? / Side air bags

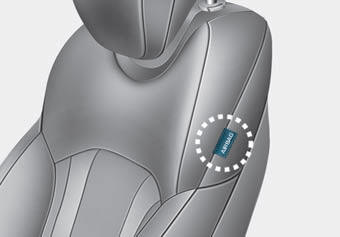

Your vehicle is equipped with a side air bag in each front and outboard rear seat. The purpose of the air bag is to provide the vehicle's driver and/or the front and outboard rear passenger with additional protection than that offered by the seat belt alone.

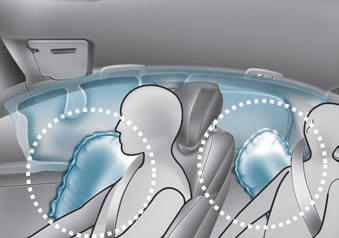

The side air bags are designed to deploy only during certain side impact collisions, depending on the crash severity, angle, speed and point of impact.

The side air bags do not only deploy on the side of the impact but also on the opposite side.

For vehicles equipped with a rollover sensor the side and curtain air bags on both sides of the vehicle may deploy if a rollover or possible rollover is detected.

The side air bags are not designed to deploy in all side impact or rollover situations.

WARNING

To reduce the risk of serious injury or death from an inflating side air bag, take the following precautions:

  • Seat belts must be worn at all times to help keep occupants positioned properly.
  • Do not allow passengers to lean their heads or bodies onto doors, put their arms on the doors, stretch their arms out of the window, or place objects between the doors and seats.
  • Hold the steering wheel at the 9 o’clock and 3 o’clock positions, to minimize the risk of injuries to your hands and arms.
  • Do not use any accessory seat covers.This could reduce or prevent the effectiveness of the system.
  • Do not place any objects over the air bag or between the air bag and yourself.
  • Do not place any objects between the door and the seat. They may become dangerous projectiles if the side air bag inflates.
  • Do not install any accessories on the side or near the side air bags.
  • Do not cause impact to the doors when the Engine Start/Stop button is in the ON position or this may cause the side air bags to inflate.
  • If the seat or seat cover is damaged, have the vehicle checked and repaired by an authorized HYUNDAI dealer.
Where are the air bags?
Driver’s and passenger’s front air bags Your vehicle is equipped with a Advanced Supplemental Restraint System (SRS) and lap/shoulder belts at both the driver and passenger seating posi ...

Curtain air bags
Curtain air bags are located along both sides of the roof rails above the front and rear doors. They are designed to help protect the heads of the front seat occupants and the rear outboa ...
