Hyundai Genesis: Door locks / Power Door Latch

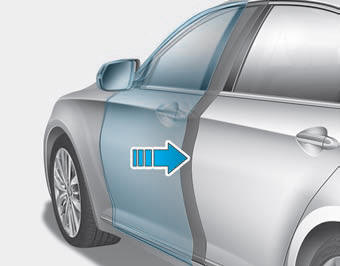

If a door isn’t closed completely but is closed to the first detent position, the door will close automatically.

CAUTION

To reduce the risk of injury:

  • Before closing the door, check there are no obstructions in the path of the door.
  • Keep your fingers away from the edge of the door or they may become trapped when the power door latch operates.
