Hyundai Genesis (DH): Steering wheel / Heated Steering wheel Schematic Diagrams
| Circuit Diagram |
| 1. |

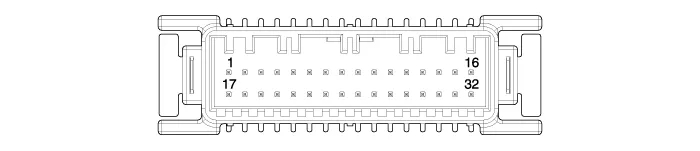

Connector terminal
|
| 2. |

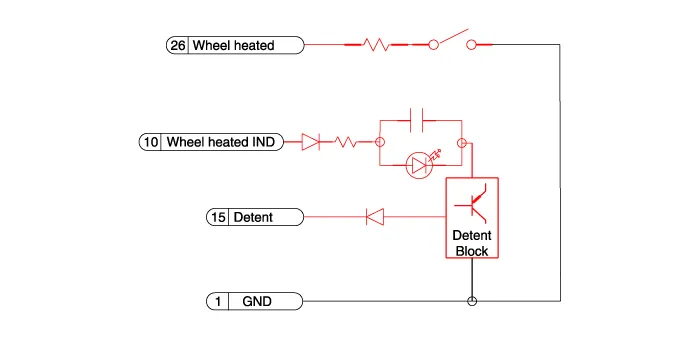

Circuit Diagram
|
Description For the convenience of drivers during the winter, exothermic pad is attached to the steering wheel surface to generate heat when it is gripped.
Inspection 1. Measure the resistance between the NTC and heated pad. A. NTC resistance(Black / Yellow, Black) - 10.0 k?
