Hyundai Genesis (DH): Interior Trim / Door Scuff Trim Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body (Interior and Exterior) / Interior Trim / Door Scuff Trim Components and Components Location

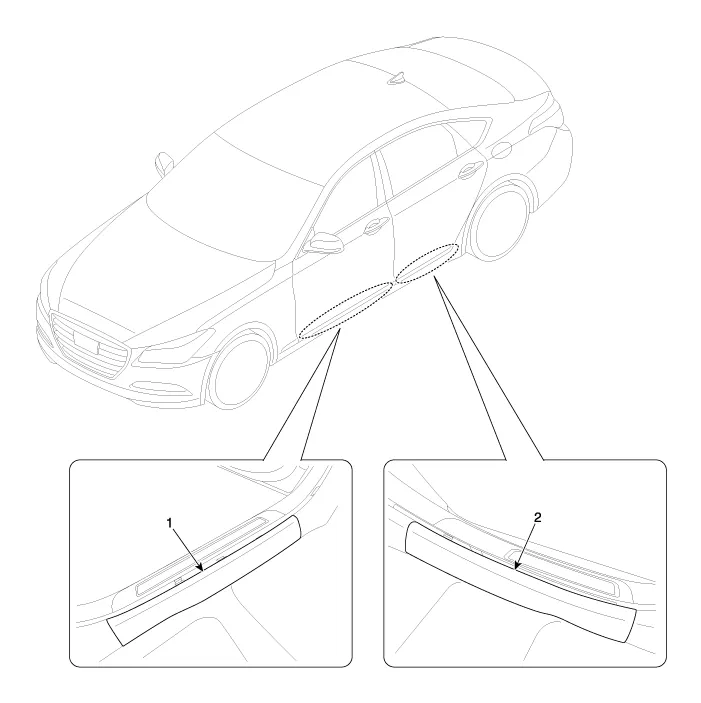

Component Location

1. Front door scuff trim
2. Rear door scuff trim

    Components 1. Front pillar trim2. Cowl side trim3. Front door scuff trim4. Front door step trim5. Center pillar upper trim6. Center pillar lower trim 7.

    Replacement [Front Door Scuff Trim]
