Hyundai Genesis (DH): Fuel Delivery System / Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Engine Control / Fuel System / Fuel Delivery System / Components and Components Location

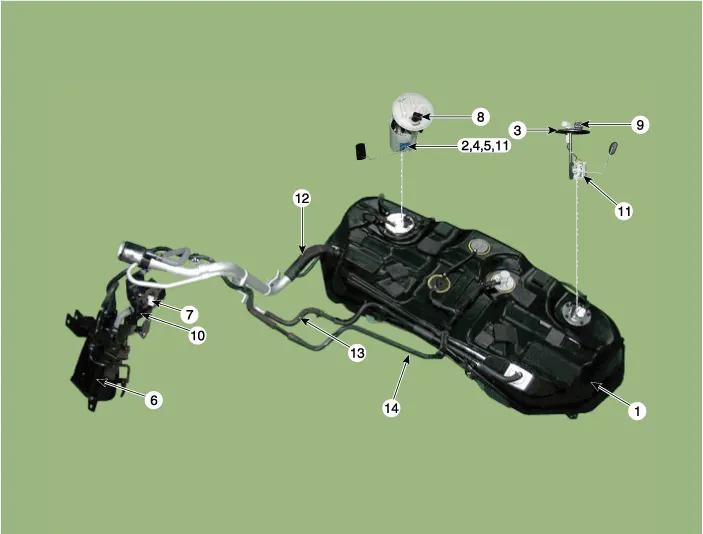

Components Location

1. Fuel tank
2. Fuel pump
3. Sub fuel sender
4. Fuel filter
5. Over Pressure Valve (OPV)
6. Canister
7. Fuel tank air filter
8. Fuel Pressure Sensor (FPS)
9. Fuel Tank Pressure Sensor (FTPS)
10. Canister Close Valve (CCV)
11. Fuel Level Sensor (FLS)
12. Fuel Filler hose
13. Leveling hose
14. Vent hose

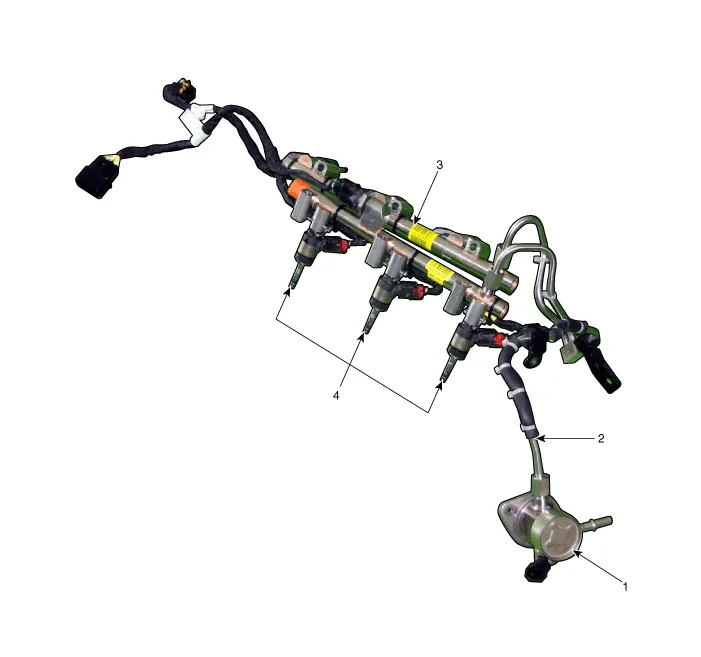

[High Pressure Fuel Line]

1. High Pressure Fuel Pump
2. High Pressure Fuel Pipe
3. Delivery Pipe
4. Injector


In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. Do not conduct any repair work right after the engine stops.
