Hyundai Genesis: Front Door / Components and Components Location

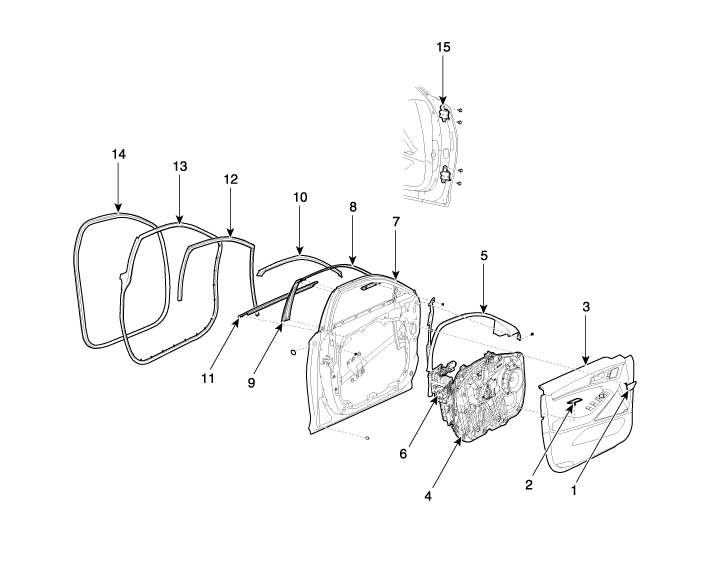

Components

1. Front door inside handle cap
2. Front door pull cap
3. Front door trim
4. Front door module
5. Front door frame inner cover
6. Front door latch assembly
7. Front door panel
8. Front door frame molding
9. Front door frame garnish
10. Front door upper open weatherstrip
11. Front door belt outside weatherstrip
12. Front door windshield glass run assembly
13. Front door side weatherstrip
14. Front door body side weatherstrip
15. Front door hinge
