Hyundai Genesis (DH): Lubrication System / Oil Filter Body Components and Components Location

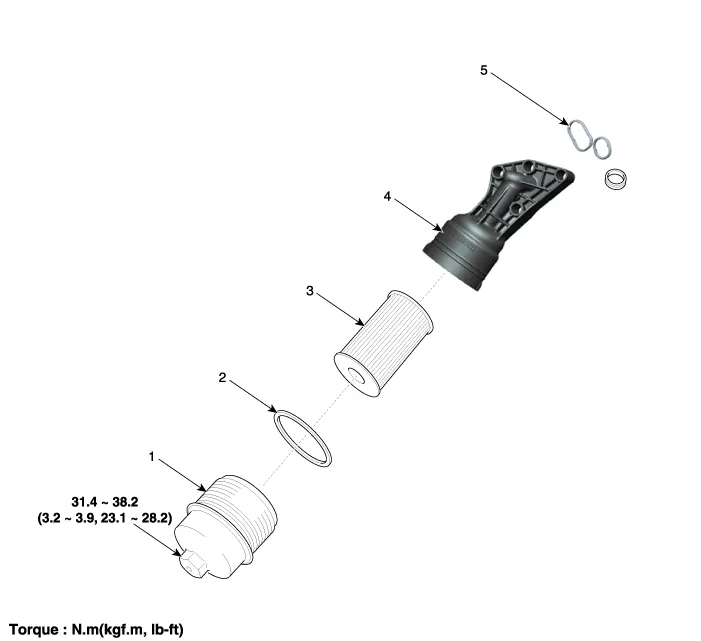

| Components |
| 1. Oil filter cap 2. O-ring 3. Oil filter element | 4. Oil filter body 5. Oil seal |
Engine oil flow diagram
Removal and Installation Oil filter body 1. Disconnect the battery "-" terminal from the trunk room. 2. Remove the engine under cover. (Refer to Engine And Transaxle Assembly - "Engine Room Under Cover") 3.
